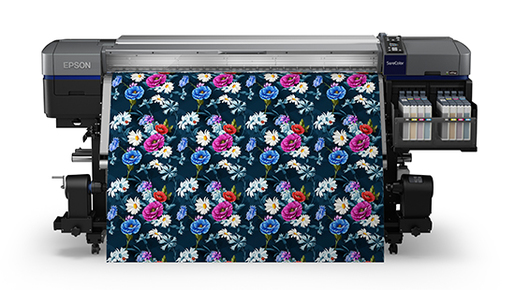

Epson SureColor SC-F9330 dirancang menggunakan teknologi baru untuk menghasilkan kinerja yang lebih tinggi dengan dilengkapi dual PrintHead PrecisionCore TFP serta teknologi tinta sublimasi terbaru UltraChrome DS dengan warna HDK (High Destiny Black).Mendukung sistem media roll-to-roll yang akurat dengan kontrol tekanan kertas otomatis.
Berikut adalah Spesifikasi Epson SureColor SC-F9330:
| Printing Technology | Dual advanced PrecisionCore® TFP® 8-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Minimum Ink Droplet Size | Smallest droplet size: 5.3 picoliters; Variable Droplet Technology |
| Maximum Print Resolution | 1440 x 720 dpi |
| Print Speed | Print speeds up to 108.6 m²/hour
Fashion/Signage: up to 93 m²/hour Sports Apparel: up to 52 m²/hour |
| Nozzle Configuration | Color and monochrome heads; 1,440 nozzles x 4 |
| Ink | |
| Ink Type | UltraChrome DS with High-Density Black ink; 4-color |
| Ink Configuration | C, M, Y, HDK |
| Replacement Ink | UltraChrome DS Ink
• High Density Black Ink Packs (T741X00) • Cyan Ink Packs (T741200) • Magenta Ink Packs (T220320) • Yellow Ink Packs (T741400) |
| General | |
| Operating Systems | Windows® 10 and 8.1 |
| Server Systems | Wasatch SoftRIP TX Server |
| System Requirements | Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection |
| Temperature | Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)
Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C) |
| Humidity | Operating: 20 – 80% (no condensation)
Operating (recommended): 40 – 60% (no condensation) |
| Sound Level | Less than 59 dB(A) according to ISO 7779 |
| Dimensions (WxDxH) | 103″ x 37″ x 53″ (2,620 mm x 934 mm x 1,332 mm) |
| Weight | 639 lb (290 kg) |
| Eco Features | RoHS compliant
Recyclable product Epson America, Inc. is a SmartWay® Transport Partner Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies. |
| Country of Origin | China |
| Warranty | Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage. |
| Ink Supply System | |
| Ink Supply Fill Volume | 3,000 mL each color x 4 colors total |
| In-box Ink Fill Volume | 2,000 mL each color x 4 colors total |
| Ink Shelf Life | 2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems. |
| Printable Area and Accuracy | |
| Maximum Paper Width | 64″ |
| Minimum Paper Width | 11.8″ |
| Maximum Printable Width | Up to 63.6″ |
| Sheet Media Handling | |
| Left/Right Margins | 0.20″ (0.40″ total) |
| Roll Media Handling | |
| Single Roll-to-Roll / Top-loading Roll | 64″ wide |
| Media Core | 2″ or 3″ core diameter |
| Maximum Roll Diameter | Up to 9.8″ |
| Maximum Roll Weight | Up to 100 lb |
| Media Thickness | From 45 gsm to 1 mm thick |
| Take-up Reel | Fully automatic “wind in” or “wind out” with tension control |
| Printer Details | |
| Printer Language | Epson ESC/P® raster |
| Interfaces | Hi-Speed USB 2.0 (1 port)
1000Base-T Ethernet (1 port) |
| Power | |
| Rated Voltage | AC 100 – 120 V; 200 – 240 V |
| Rated Frequency | 50 / 60Hz |
| Power Consumption | Printing: approx. 570 W or less
Standby Heaters On: 340 W Sleep Mode: approx 17 W Power Off: approx 1.0 W |
| Power Requirements | Requires two outlets |
| Rated Current | 10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V |
